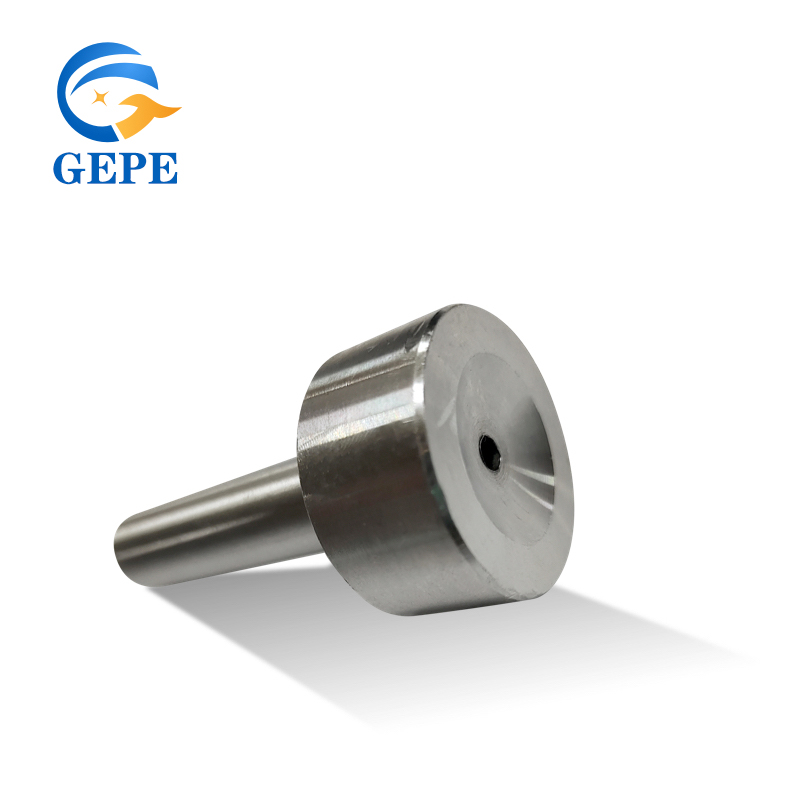

High Precision Type A Sprue Bushing Mould For Precision Injection
Description
The sprue sleeve, also called pumping nozzle, pouring nozzle and pouring nozzle, is a part of the runner for injecting molten plastic material into the mold from the nozzle of the injection molding machine, and is used to connect the molding mold with the metal fittings of the injection molding machine.
dimensional drawing
| H | T | Type | D | L(mm) | SR | P | A° |
| 25 | 15 | A-GP | 10 | 60~100 | 0 11 13 16 16 20 | 2 2.5 3 3.5 | 2 3 |
| 12 |
| 13 |
| 35 | 20 | 16 |
| 20 |
If the quality of sprue sleeve is different, the flow rate and molding conditions of plastic raw materials will change, and it is difficult to carry out unified quality management of mold. GEPE's sprue sleeve has good quality assurance, so it can avoid the above phenomenon.
Product features
| Product Name | Sprue Bushing | Suitable mold | Plastic Injection Mould |
| Place of Origin | Guangdong, China | Sizes | Misumi/DME/Hasco Standard |
| Product Material | HPM1/SKD61/DC53/ SAE 6145 | Taper | 0,5°, 1° and 1°30' |
Remarks
If the quality of sprue bushing is different, the flow rate and molding conditions of plastic raw materials will change, and it is difficult to carry out unified quality management of mold. GEPE sprue bushing has good quality assurance, so the above phenomenon can be avoided.
We have standard parts in stock. Please refer to the size table above. Generally, the goods can be delivered within 3 working days. If you need to customize non-standard parts, the delivery time is generally 15-20 days. For the customization of non-standard parts, please give us your drawings, clearly indicating the requirements of size, tolerance, material and quantity, and then we will quote you a preferential price.
Product display
Why choose us
- HASCO and other standard parts are in stock, and non-standard customization schemes are provided.
- Your inquiry will be highly valued and answered within 24 hours. Direct supplier, manufacturing price
- Professional manufacturers, advanced equipment and experienced engineers.
- Compared with all other products, the quality is guaranteed and the material quality is superior.
- Customer-oriented, efficient solutions to control costs for customers. Welcome OEM and ODM orders, professional R&D team. High quality and low price, each part will be given 100% quality inspection and testing.
HOW TO BUY
Packing and Shipping
The products are packed in plastic bags, and the outside is packed in cartons. In shipping, all well-known express delivery companies and shipping companies can choose, but only emergency express delivery companies can be used in remote areas. Shipping conditions can be provided, such as EXW, FOB and CIF.
